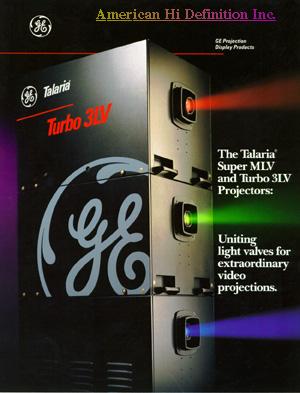

| The Turbo 3LV Projector |
| 7000 Lumens 300:1 Contrast Ratio |
Drawing
Power Requirement
Lens Chart |
 |
| Specifications: |
| Light Output: |
7,000 ANSI lumens |
| Horizontal Input Scan: |
Any two frequencies between 31-36 KHz. |
| |
For video line rate the Turbo 3LV interfaces with a variety of scan doublers. |
| Lenses: |
interchangeable lenses with lens factors of 1.5:1,3:1, 4.2:1,4.9:1 and 7:l
(3 lenses). Anamorphic lenses not required for HDTV Multiple-lens system
available for wider selection of lens factors and use of commercially available
lenses. |
| Resolution: |
Video: 1100 @ lines horizontal by 750 vertical (RGB input). HDTV Video:
750 lines horizontal per picture height by 750 vertical (16:9 aspect ratio).
Computer display: suitable to display of up to 1024 x 1280 pixel format. |
| Recommended picture size: (width) |
7.5'-40' |
| Contrast ratio: |
300:1 typical |
| Convergence: |
Screen convergence. Remote convergence controls provided for ease of setup.
Accuracy greater than or equal to 0.1% of picture height. |
| Horizontal retrace time: |
3.0 microseconds |
| Vertical retrace time: |
300 microseconds |
| Electronic bandwidth |
30 MHz |
| Inputs accepted: |
All BNC one set RGB, sync. Loop through capability for all inputs. Separate
H and V sync. Tri-level sync. |
| Lamp power: |
3 x1600 watt xenon lamps |
| Operator control unit: |
Analog plus convergence |
| Physical dimensions: |
70.5" H x 23" W x 32" L |
| Weight: |
600 lbs. (280 kg) |
| Power consumption: |
50AMPS @ 234 Volt |
